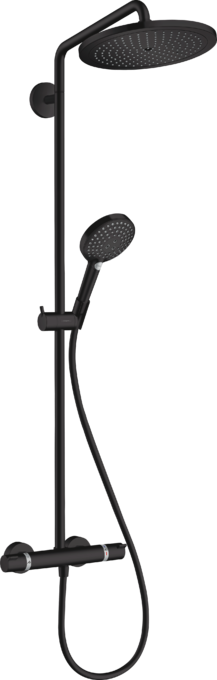

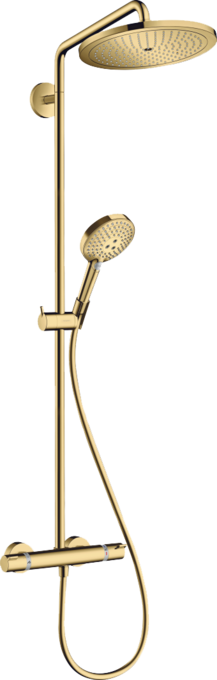

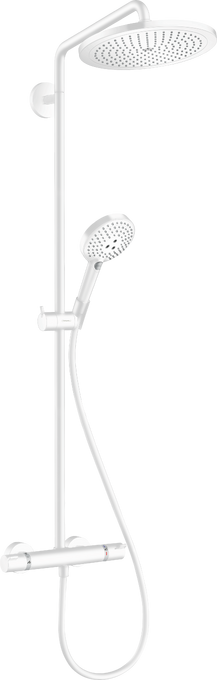

consists of: overhead shower, hand shower, shower thermostat, shower hose, slider, shower bar
overhead shower Croma 280
shower head size overhead shower: 280 mm
spray type overhead shower: RainAir
ball-joint: overhead shower angle adjustable
maximum flow rate at 3 bar: 9 l/min
flow rate RainAir spray (at 3 bar): 9 l/min
spray type hand shower: RainAir, Rain, Whirl
minimum flow pressure: 2,2 bar
max. operating pressure: 10 bar
pipe can be shortened in height
shower bar diameter: 22 mm
height-adjustable hand shower holder
shower arm length overhead shower: 400 mm
swivel shower arm
thermostat Ecostat Comfort
safety stop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension DN15
connection thread G ½
centre distance 150 ± 12 mm
intrinsically safe against backflow
2 functions
